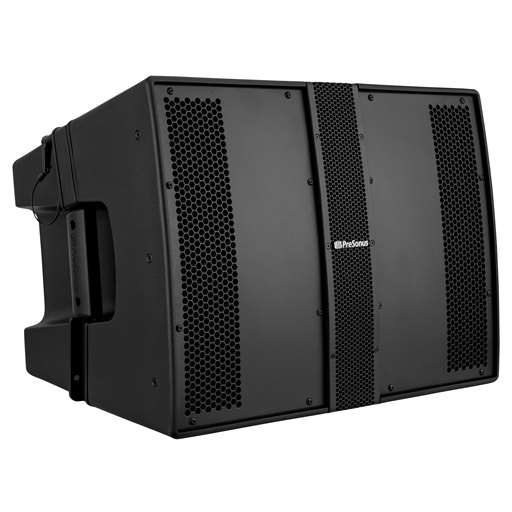

PreSonus CDL10P Line Array/Point Source Hybrid Constant Directivity Loudspeaker

Features:

PreSonus CDL10P Line Array/Point Source Hybrid Constant Directivity Loudspeaker

The CDL10P’s hybrid point-source/line-array design delivers focused sound with consistent SPL coverage both on- and off-axis, making it an excellent choice for mobile and installed applications. Rigging CDL10P enclosures is made easier thanks to integrated pin-loaded rigging hardware. A dual-angle pole mount is provided, supporting the use of one or two enclosures when pole-mounted, and the CDL10P’s integrated 1000W Class D power amplifier features onboard DSP presets to facilitate and simplify arrayed configurations.

Features:

• Continuous-directivity constant curve array with six 2-inch cone drivers disperses sound 120° horizontally
• 15° vertical directivity can be extended from 30° to 90° with additional arrayable CDL10Ps
• 10-inch long-throw LF transducer with 2.5-inch voice coil
• Low 420 Hz crossover point minimizes comb filtering and enhances line array intelligibility
• 1000 watts Class D power for high SPLs and lightning-fast transient response
• Onboard DSP: 90 Hz High-pass filter, Array Mode (1-6 boxes), Sub Mode (Off, CLD18s, ULT18, or AIR18s)
• 35 mm pole socket with 7.5° downward tilt use with up to two CDL10P on a tripod or atop PreSonus® CDL Sub18 subwoofer
• Integrated flyware to create an array of up to six CDL10Ps
• Signal, -3 dB, Limiter Protection, and Clip Monitoring LEDs
• Rugged, lightweight plastic enclosure and tour-grade, 1.2 mm steel grille – great for touring bands and mobile DJs

Model:	CDL10P
Manufacturer:	presonus
