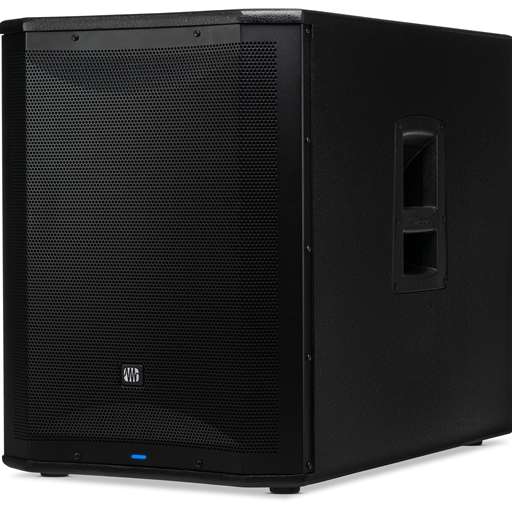

PreSonus AIR XD Sub 15 Active Extended Definition Subwoofer

Features:

PreSonus AIR XD Sub 15 Active Extended Definition Subwoofer

Perfect for mobile rigs or permanent installs, the PreSonus AIR XD Sub 15 delivers up to 128 dB of powerful, accurate low-end with a 15-inch driver, 2000W Class D amp, variable lowpass filter, and DSP presets for versatile system integration and array configurations.

Designed for both mobile setups and permanent installations, the PreSonus AIR XD Sub 15 active subwoofer delivers deep, accurate low-end performance that perfectly complements any full-range PA—especially the AIR XD-series. Its 15-inch low-frequency driver with a 3-inch voice coil is powered by a robust 2000W Class D amplifier, producing clean, powerful bass down to 32 Hz and output levels up to 128 dB.

Advanced onboard DSP makes system integration fast and easy. A variable lowpass filter (60 Hz–150 Hz) lets you fine-tune the crossover point for a seamless transition to your tops, while custom presets optimize performance with AIR XD full-range loudspeakers. An onboard alignment delay and array presets simplify the setup of ground-stacked and end-fire subwoofer arrays. A vibrant full-color display provides intuitive control and precise metering.

Connectivity is flexible, with two mic/line combo inputs and direct outputs to accommodate a wide range of signal paths. Integrated Bluetooth with TWS Bridge Mode allows you to pair with a second speaker for wireless stereo playback—ideal for mobile DJs, weddings, corporate events, and more.

Despite its high output, the AIR XD Sub 15 is compact, lightweight, and road-ready. Housed in a durable 15mm wood enclosure, it includes ergonomic side handles, ground-stacking features, and built-in hardware for the included caster kit—making it easy to transport and deploy in any environment.

Specifications:

• 15-inch custom woofer with 3-inch voice coil
• 2000W Class D power (dynamic)
• Frequency Response: 39 Hz to 95 Hz (-3 dB), 32 Hz to 131Hz (-10 dB)
• 128 dB SPL (max)
• 2 XLR/¼” combo inputs with direct outputs
• Built-in Bluetooth with TWS Bridge Mode for wireless stereo pairing
• Variable lowpass filter lets you dial in upper frequency limit
• Alignment delay up to 12m
• Locate controls adjust performance for arrayed and non-arrayed applications:
  • Normal – non-arrayed applications
  • Cardioid—create a ground-stacked cardioid subwoofer array (using two of the same model subwoofer)
  • Endfire – create an end-fire cardioid subwoofer array (using two of the same model subwoofer)
• “Mo’ Bass” tuning for extended low-end performance
• Polarity invert
• Rugged, texture-painted wood enclosures and tour-grade 1.5mm steel grille
• Comfortable ergonomic handles, ground-stacking provisions, and castor provisions (castor kit included)

Model:	AIRXDSUB15
Manufacturer:	presonus
